Modular Precision Vice

Purpose:

• Designed for precise clamping of workpieces during machining operations like milling, grinding, and CNC processes. Ideal for modular setups and flexible manufacturing systems.

Material:

• High-grade alloy steel, hardened and tempered to ensure durability and resistance to wear.

Hardness:

• HRC 58-62 on clamping surfaces for long-lasting performance.

Accuracy:

• Parallelism: ≤ 0.005 mm
• Perpendicularity: ≤ 0.005 mm

Clamping Range:

• Jaw Opening: 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm

Jaw Width:

• 150 mm

Weight:

• Varies based on size (e.g., 25 kg for 150 mm CLAMP width).

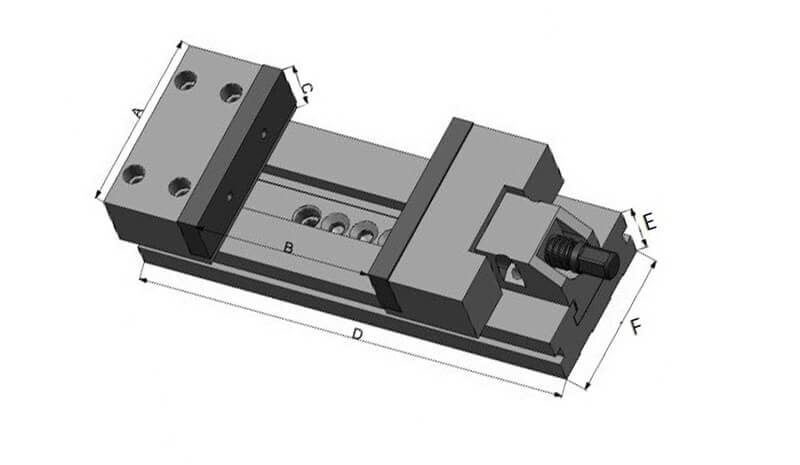

Specification

Vice	150 MM	200 MM	250 MM	300 MM	350 MM	400 MM
A	150	150	150	150	150	150
B	150	200	250	300	350	400
C	52	52	52	52	52	52
D	370	420	470	520	570	620
E	50	50	50	55	55	55
F	125	125	125	125	125	125

Features:

• Modular design for flexibility in use with CNC machines or manual setups.
• Quick-change jaws for efficient workholding adjustments.
• High clamping force with minimal deformation of the workpiece.
• Corrosion-resistant finish for longevity.

Applications:

• CNC machining
• Precision milling
• Grinding operations
• Assembly and inspection setups

Optional Accessories:

• Swivel base for angular positioning.
• Soft jaws for delicate clamping.
• Customizable jaws for specific workpiece profiles.
